16 SEGMENT SOLID STATE LiDAR SENSOR MODULE, LeddarTech's M16

The Leddar™ M16 Sensor Module is an advanced solid- state LiDAR that combines 16 independent active elements into a single sensor, resulting in rapid, continuous and accurate detection and ranging—including lateral discrimination—in the entire wide beam, without any moving parts. The Leddar M16 can be easily integrated into almost any application to add sensing intelligence capability, enabling developers and integrators to make the most of this cutting-edge technology while leveraging its unmatched flexibility.

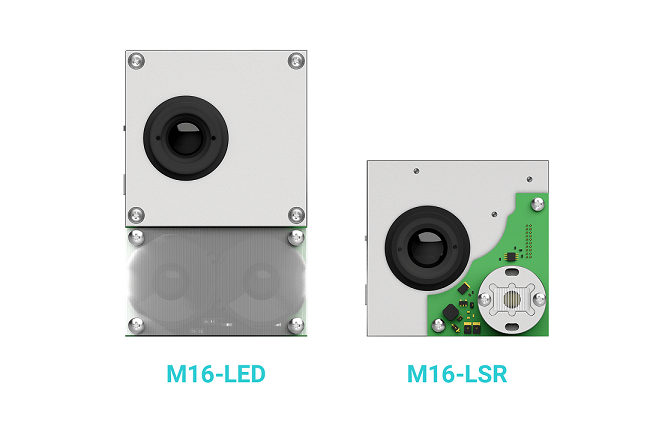

The M16 modules are available in two main configuration types: the classic LED family and the new Laser family.
The M16-LED ’s infrared LED light source provides wide-beam illumination at ranges up to 100 m and is offered in six different field-of-view configurations
The new M16-LSR uses laser sources to achieve longer ranges, providing narrower and better-defined vertical FOV, — all in a smaller form factor.
Both M16 families are perfectly suited to outdoor operation, provided they are used within an enclosure:

Available interfaces for the M16 include: USB, RS-485, CANbus and UART. A 3.81 mm x 8-pin male header is provided for interfacing through a cable harness or terminal block. Also, a USB mini-B connector is provided for use with the Leddar Enabler SDK, and a 2 x 20, 0.050-inch header is provided for custom expansion.

Features of M16

    16 independent segments with simultaneous acquisition
    Multitarget and lateral discrimination capabilities
    Various beam options for optimized field of view (FOV)
    Up to 165 m detection range (541 ft)
    Solid-state design with no motorized mechanisms
    Wide operating temperature ranges
    All-weather performance and immunity to lighting variations–both day and night

For better understanding you may have a look at the following videos
Understanding LiDARs
